Specifications
| Parameter / Item | Technical Specification |
| Brand / Model | PINFL / PF36 |

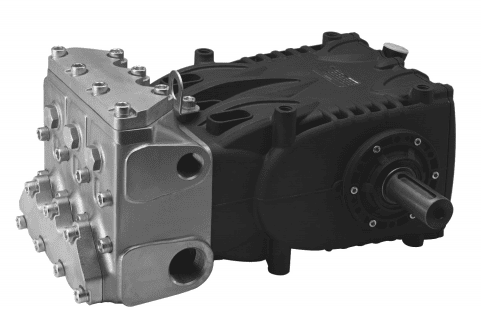

| Pump Type | High-Pressure Triplex Plunger Pump |
| Structure & Material | Die-cast Alloy / Cast Iron Crankcase, Forged Manifold, Solid Ceramic Plungers |
| Flow Rate (Flow Capacity) | 122 – 152.6 L/min (32.2 – 40.3 GPM) |
| Max Working Pressure | 130 – 160 Bar (1885 – 2320 PSI) |
| Rated Speed (RPM) | 800 – 1000 RPM |
| Required Power | 37 – 38.2 kW (50 – 52 HP) |
| Inlet Port Size | G 1 1/2″ |
| Discharge Port Size | G 1″ |
| Shaft Type | Solid Shaft (Horizontal / Symmetrical Design) |
| Max Fluid Temperature | 60°C (140°F) |
| Net Weight | Approx. 69 – 80 kg |
Performance Variations
-
Option 1 (800 RPM): 122 L/min (32.2 GPM) @ 160 Bar (2320 PSI) | Power: 37 kW / 50 HP
-
Option 2 (900 RPM): 137 L/min (36.2 GPM) @ 140 Bar (2030 PSI) | Power: 37 kW / 50 HP
-
Option 3 (1000 RPM): 152.6 L/min (40.3 GPM) @ 130 Bar (1885 PSI) | Power: 38.2 kW / 52 HP
Key Features & Advantages
-
Heavy-Duty Construction: Premium cast iron / alloy crankcase and forged manifold designed for continuous industrial operations.
-
Precision Ceramic Plungers: High-density, precision-ground solid ceramic plungers deliver superior wear resistance and extended seal life.
-
Integrated Cooling System: Features double pressure packing with integrated high-low cooling to handle intensive wash cycles.
-
Symmetrical Shaft Design: Allows easy left-to-right shaft conversion to fit flexible installation layouts in automatic car wash systems.
-
High Efficiency & Dependability: Specially designed for high-volume rollover car washes, touchless vehicle cleaning stations, street sweepers, and industrial water blasting.
Price: USD3410
