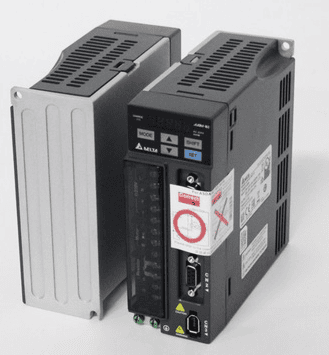

Delta servo drive ASD-B3-0721-L

Delta ASDA-B3 Series AC Servo Drive Specifications

• Model Number: ASD-B3-0721-L

• Series: ASDA-B3 Series

• Product Type: Standard AC Servo Drive

Key Technical Specifications

• Rated Output Power: 750 W (0.75 kW)

• Input Power Voltage: 1-Phase / 3-Phase AC 200V – 245V, 50/60 Hz

• Control Mode / Command Type: PT Mode (Pulse Train / Position Control) & Analog Voltage Control

• Encoder Resolution: 24-bit Absolute Encoder Support (16,777,216 pulses/rev)

• Frequency Response: 3.1 kHz bandwidth

• Control Interface:

  • Pulse/Direction (PT Mode)

  • Analog Input (Speed / Torque control)

  • Digital Inputs (DI) / Digital Outputs (DO)

• Communication Interface: RS-485 / RS-232 (Modbus protocol)

• Enclosure Rating / Protection: IP20

• Cooling Method: Natural Air Cooling / Fan Cooling

• Matched Servo Motor Series: ECM-B3 Series 750W Motors (e.g., ECM-B3M-C20807RS1 / SS1)

USD 426
