single arm touchless car wash machine HP-230

Product Title

HP-230 Single-Arm Touchless Car Wash Machine

Price

Starting from USD 18000

Product Overview

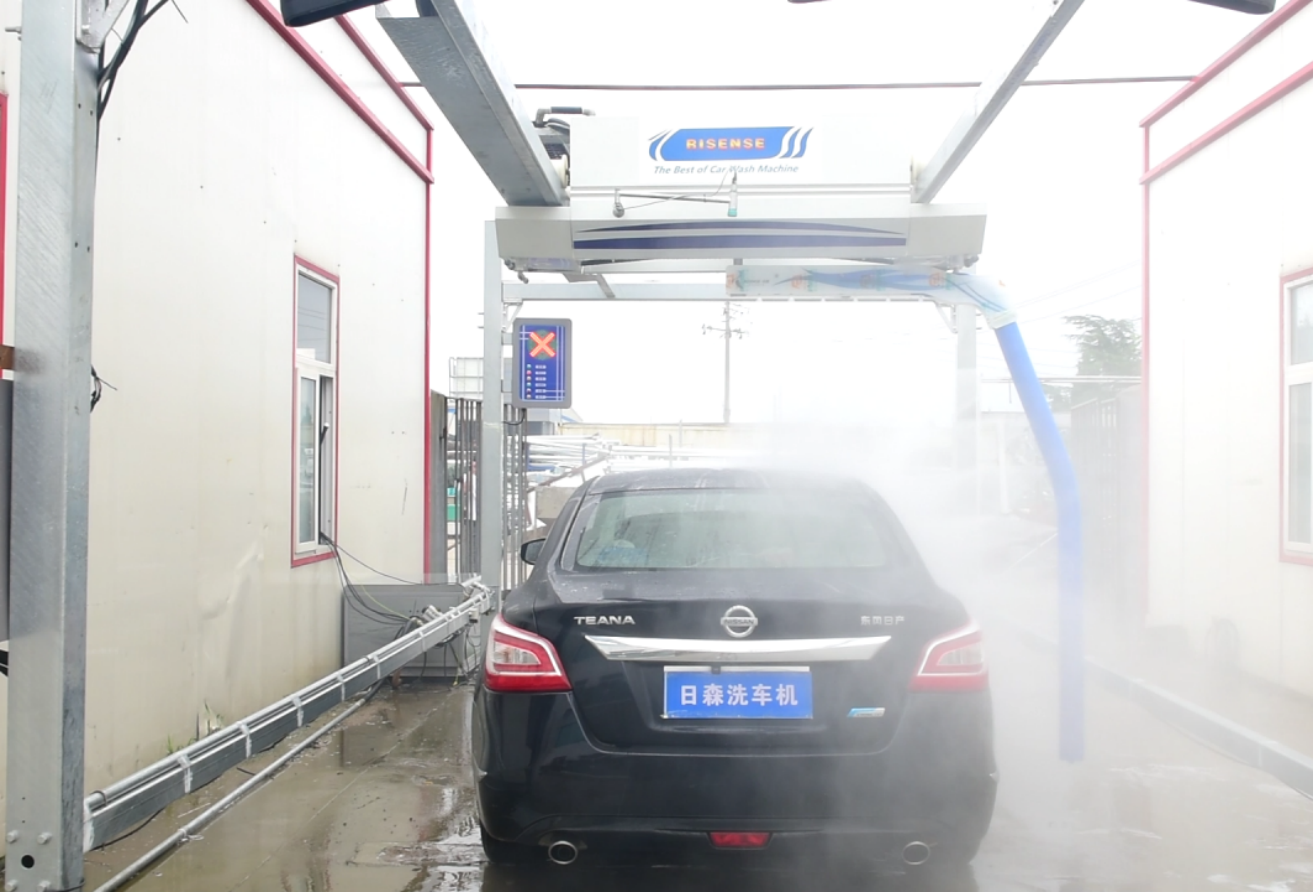

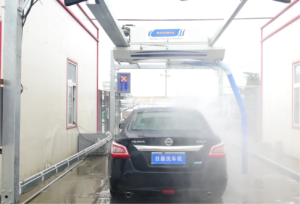

The HP-230 is an advanced, high-efficiency single-arm touchless car wash system designed to deliver an exceptional, scratch-free cleaning experience. Engineered for modern car wash businesses, it combines smart control technology, 360-degree precision rotation, and robust components to maximize cleanliness and operational throughput while minimizing maintenance costs.

Key Features & Benefits

• 360° Smart Rotation & Touchless Cleansing: Eliminates customers’ worries about brushes scratching the vehicle body. It rotates for 360 degrees so it can wash the car without any dead angle.

• Rich, Eco-Friendly Foam: The shampoo is rich, neutral, pollution-free, and with high cleanliness so that the customer can have a better feeling.

• Easy to Operate: You can begin to wash the car by pressing two buttons under all the car washing models.

• Intelligent Self-Diagnosis: Equipped with automated fault identification codes, making the fault easy to identify and troubleshoot.

• Streamlined & Durable Design: The structure of the machine is relatively simple so it is easy to maintain.

• Ideal for Premium Services: It is suitable for concept car wash stations which promote fine washing.

Technical Specifications

Parameter	Specification
Cars Can Be Washed	Car, coach, business car within 7 seats
Car Wash Size	5300 * 2200 * 2050 (mm)
Overall Dimension	6500 * 3315 * 3150 (with chassis spray)
Installation Size (mm)	7600 * 3500 * 3300 (with chassis spray)
Equipment Room Size	3.5 * 1.8 * 2.3m
Voltage	380V 50HZ three phase
Power	Total power: 20kw, maximum power while working: 20kw
Water Pump Pressure	6-8MPa
Air Source Requirement	0.5-0.7MPa
Car Wash Speed	Normal wash: 3min/car | Fine wash: 5min/car

Functional Configuration

• Shampoo Spraying System: One group

• Wipe-Free Detergent Spraying System: One group

• Brightening Wax Spraying System: No

• Fixed Air Drying System: No

• Intelligent Device Data: Management, checking, operation

• Self-Diagnosis Available

Key Parts Supply Chain

Component	Specification / Brand
Frame	Hot-dipped Galvanized
Frequency	Delta
Touch Screen	Delta
Electric Control System	Delta
High Pressure Plunger Pump	TLD
Ultrasonic	P+F
Photoelectric Sensor	BANNER
Proximity Sensor	P+F
Contactor	Schneider
Metering Pump	New Dots
High Pressure Nozzle	Spraying
High Pressure Hose	Heydley

Resource Consumption Reference

• Water Consumption: 208L/car

• Power Consumption: 0.61KWh/car

• Shampoo Consumption: 35-60ml/car

• Wipe-Free Detergent Consumption: 30-50ml/car

Commercial & Order Information

• Ordering Cycle: 25 days

• Manufacture Time: 15 days

• Package Info: 1 * 20 feet container could stuff 2 sets of machines

• Payment Term: 30% T/T to start manufacture, and 70% T/T before shipping out

• Installation Support: For technician machine installation, client arranges air tickets, food, and hotel.

• Validity Period: 30 days
