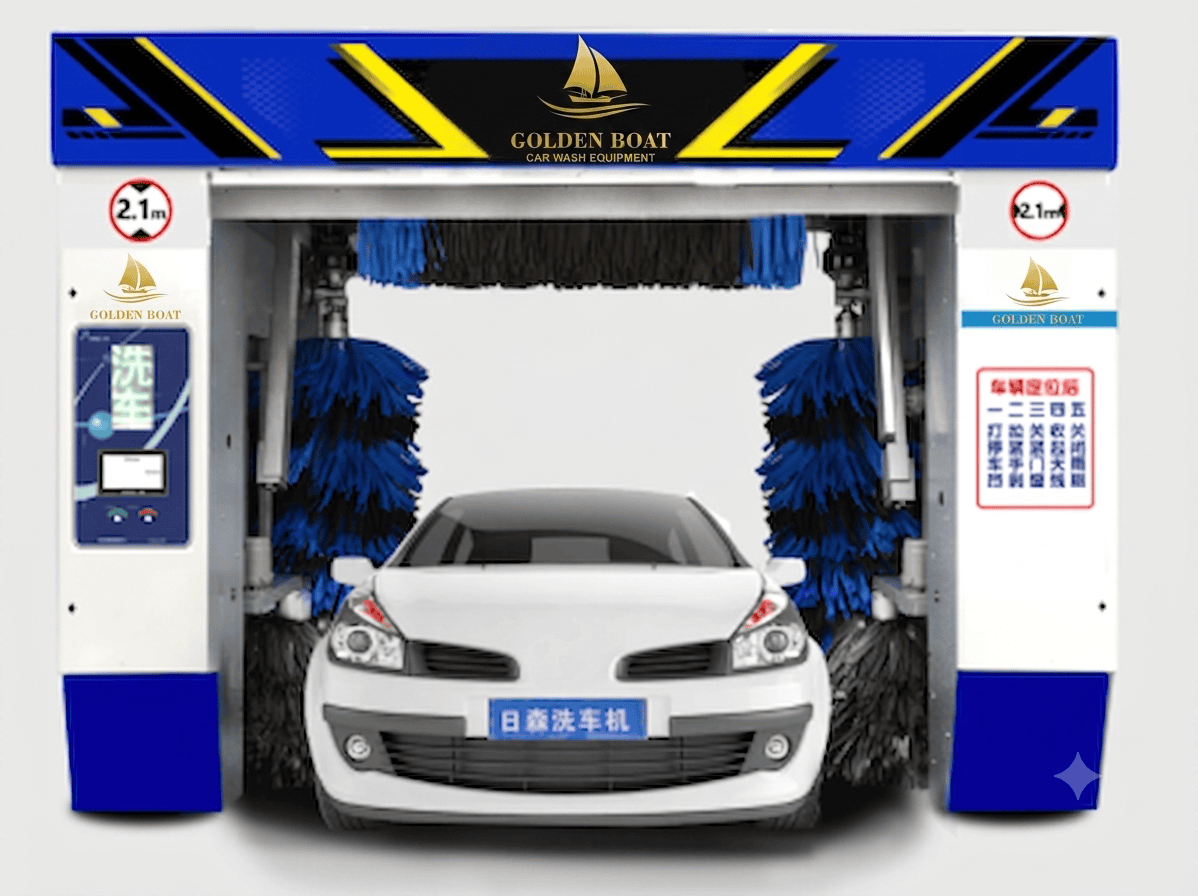

CF-320C rollover car washing machine

Here is the extracted and organized text from CF-320C报价单.xls in English:

📋 1. Commercial & Order Terms

• Product Name: Rollover car wash machine

• Model: CF-320C

• Quantity: 1 set

• Ordering Cycle: 25 days

• Validity Period: 30 days

• Manufacturer: Qingdao Risense Mechatronics Co., Ltd.

• Commercial Terms & Notes:

  1. Payment Term: 30% T/T to start manufacture, and 70% T/T before shipping out.

  2. Package Info: 1 * 20-foot container can hold 2 sets of machines.

  3. Manufacture Time: 15 days.

  4. Installation Service: Client arranges air tickets, food, and hotel for the technician.

⚙️ 2. Technical Data & Specifications

• Overall Dimensions: 2.61m * 3.6m * 2.815m

• Conveyor Length: 9m * 3.2m

• Installation Scope Requirements: 10,870mm * 4,300mm

• Voltage & Power: AC380V 50Hz | Total Power: 5.6 kW (Maximum operating power: 5.6 kW)

• Water Resource Requirement: Pipe diameter DN25, flow ≥ 80L/min

• Air Source Requirement: 0.75 – 0.9 MPa (7.5 – 9 kgf/cm²)

• Ground Flatness Requirement: Error ≤ 10mm

• Applicable Vehicles: Light four-wheeled vehicles, medium passenger cars, and mini-vans under 9 seats

• Max Washable Vehicle Size: 5.2m * 2.1m (excluding mirrors) * 2.1m

• Washing Speed: 2 minutes 58 seconds per rollover

🛠️ 3. Functional Configuration & Brush System

• Shampoo Spraying System: 1 group

• Unattended System: Supported

• Voice Prompt: Yes

• Intelligent Device Data Management: Management, checking, and operation

• Self-Diagnosis System: Available

• Chassis Spraying System: Optional / Selected

• Brush Configuration:

  • Short Vertical Brushes: 2

  • Long Vertical Brushes: 2

  • Top Brush: 1

🔧 4. Key Components & Brands

• Frame Structure: ZFC alloy steel square tube

• Electric Control System: MCU (Risense)

• Brushes: 4th Generation Foam Brush

• Motor Protector: Schneider (France)

• Intermediate Relay: Honeywell (USA)

• Motor: TLD

• Photoelectric Sensor: BANNER (USA)

• Proximity Sensor: P+F (Germany)

• Touch Screen: China

• Moving Geared Motor: TLD

• Contactor: Schneider (France)

• Solenoid Valve: China

💧 5. Resource Consumption (Per Car)

• Water Consumption: 75 – 115 L / car

• Power Consumption: 0.25 – 0.35 kWh / car

• Shampoo Consumption: 10 ml / car

💡 6. Product Superiority & Key Advantages

1. Japanese Technology Origin: Golden boat has led car wash technology in China for over 15 years.

2. Enhanced Shop Image: Advanced design significantly improves the professional appearance of the station.

3. Labor Saving: Fully automatic system replaces 3–4 workers, saving substantial annual wage expenses.

4. High Efficiency: Capable of washing up to 500+ cars per day.

5. Low Utility Costs: Consumes minimal water and power per wash cycle.

6. High Durability & Reliability: High-quality imported components reduce failure rates and ensure long-term stability.

7. Safety Features: Built-in explosion-proof and anti-lock safety protection.

8. Simple Operation: One-touch starting system with minimal learning curve.

9. Fault Identification Code: Built-in diagnostic codes make troubleshooting fast and easy.

10. Vehicle Protection: Uses 4th generation soft foam brushes to protect car paint.
